AMT 30 Modem Series

Features

  • 16 kbps to 10 Mbps in 1 bps Steps
  • Viterbi  FEC
  • L-band or 70MHz interfaces
  • Multi-demod configurations
  • BPSK ,QPSK, 8PSK & 16QAM Operation
  • Optional: Reed Solomon
  • Bridging and/or IP routing (standard)
  • Optional: turbo Product Code

Overview

The AMT 30 modem series provide unparalleled flexibility in interfaces and capabilities stemming from its modular construction.  The AMT supports two modulator/demodulator stuffing slots allow the AMT 30 modem series to support the following configurations:

Tx-only Modulator only
Rx-only Demodulator only
Tx-Rx Mod/Demod
Tx-2RX Mod/Dual-demod
4Rx (referred to as AMT34) 2x Dual-Demod or Quad-demod

The modem modulates carriers directly at L-band, resulting in an efficient uplink system with an extremely pure output spectrum. A 70+18hz/140+36Mhz option is also available. The modem includes support for BPSK, QPSK, 8PSK and 16QAM with data rates from 16 kbps to 10 Mbps in 1 bps steps.

The AMT-30 provides Viterbi forward error correction (FEC) as standard.  Available options include Intelsat compliant Reed Solomon outer FEC codec, or Turbo FEC option that greatly improves BER performance.

Monitor and Control (M&C) is available via RS-232 and RS-485 ports to provide access to a command line interface, with an Ethernet option for SNMP and Telnet interfaces. In addition, the modem can be configured via an optional front panel or hand held controller.

DC power and high stability 10 MHz reference can be supplied for powering and synchronizing a Block Up Converter (BUC) and Low Noise Block Down Converter (LNB).

The standard data interface for the AMT 30 modem family is a 10/100BaseT Ethernet providing supporting forwarding rates of up to 10Mbps for bridging or IP routing applications. In the AMT34 configuration, the AMT34 forwarding rate is limited to 10Mbps. Alternatively, the AMT30 can be ordered with EIA530 serial port interface capable of supporting 10Mbps speeds. In the AMT34 configuration, each of the four EIA530s is capable of supporting 10Mbps.

In addition, Advantech’s PowerTrackTM system provides additional stability (control) over the transmission chain when using compatible AMT BUC’s.  AMT BUCs include a power detector on the output, which the modem monitors and adjust its own Tx output level in response and maintaining a constant output power from the BUC. This closed loop power control maintains the output power from the BUC stable within ± 1 dB under all environmental conditions.

OPTIONAL FEATURES:

  • Available with 4Mbps and 10Mbps options.
  • Turbo FEC ¾, ⅞, 0.95 Rates
  • EIA530 in lieu of 10/100BaseT as standard data interface.
  • Concatenated Reed Solomon outer/ Viterbi inner FEC
  • Power Supplies and High Stability
  • Reference for BUC and LNB

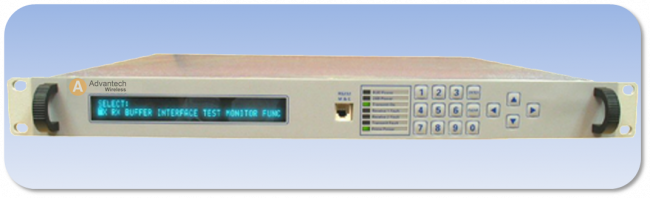

  • Optional Front Panel Display and   Keypad (as shown)
  • 1:1 redundancy solutions available

The AMT30. Versatile. Effective. Affordable.
