Product Category: Satellite Communications

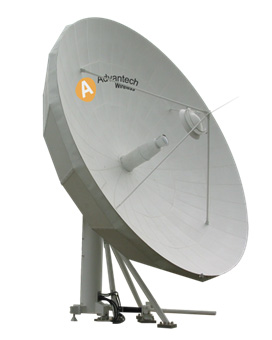

A-Line Series 12m ANTENNA
Overview The Advantech Wireless A-Line Series model 3912T, 12M antenna system, designed and manufactured with CAD, can be applied to the newly updated INTELSAT (IESS) standard B earth station. The Advantech Wireless A-Line Series 12M antenna system consists of dual shaped Gregorain reflectors, a frequency reuse feed network with corrugated horn, an elevation-over-azimuth limit motion More Info »A-Line Series 13m ANTENNA
Overview The Advantech Wireless A-Line Series models 3913TCX, 3913TCK, 13M antenna system, designed and manufactured with CAD, can be applied to the newly updated INTELSAT (IESS) standard earth station. The antenna system consists of dual shaped Cassegrain reflectors, a frequency reuse feed network with corrugated horn, an elevation-over-azimuth limit motion kingpost pedestal. The backup structure More Info »A-Line Series 16m-20m ANTENNA

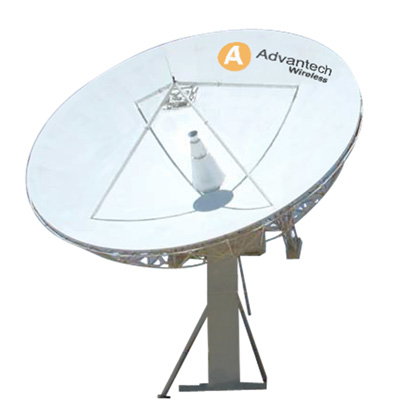

Overview The Advantech Wireless A-Line Series models 3920TCX, 3920TC: 20M and 3916TCX, 3916TC: 16M antenna systems are designed and manufactured with CAD and can be applied to the newly updated INTELSAT (IESS) standard A earth station. The Advantech Wireless A-Line Series antenna system consists of dual shaped Cassegrain reflectors, a frequency reuse feed network with More Info »A-Line Series 2.4m ANTENNA

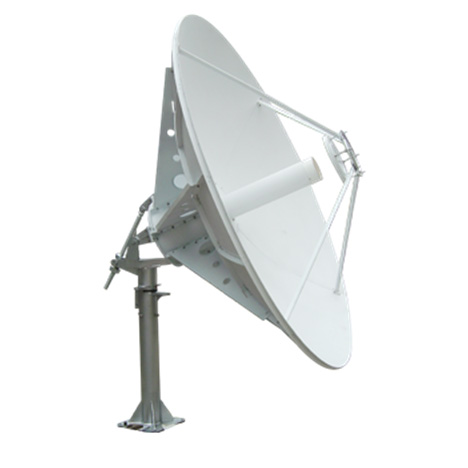

Overview Advantech Wireless A-Line Series 2.4M antenna adopts Dual Shaped Compact Cassegrain precision-formed reflector mounted on an Az over El pedestal providing necessary stiffness and pointing accuracy required in C and Ku band operation. It is provided with a Rx/Tx (2 ports) feed with corrugated horn and OMT and is of optimized R.F. specification, operates More Info »A-Line Series 3.7m ANTENNA

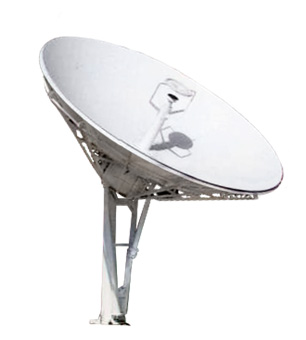

Overview Advantech Wireless A-Line Series antennas are designed and manufactured in batches 3.7-meter aluminum reflector antenna for VSAT applications in C band (Model C37T) and Ku band (Model K37T). The A-Line 3.7M antenna adopts Dual Shaped Compact Cassegrain precision-formed reflector mounted on a Az.over El. pedestal providing necessary stiffness and pointing accuracy required in C More Info »A-Line Series 4.5m ANTENNA

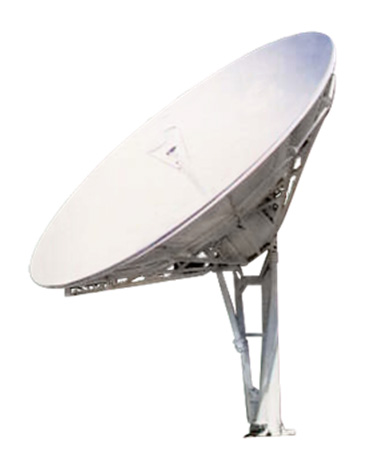

Overview Advantech Wireless A-Line Series antennas are designed and manufactured in batches with 4.5-meter aluminum reflector antenna for VSAT applications in C band (Model C45T) and Ku band (Model K45T). The A-Line Series 4.5M antenna adopts a Dual Shaped Compact Cassegrain precision-formed reflector mounted on a Az over El pedestal providing necessary stiffness and pointing More Info »A-Line Series 6m ANTENNA
Overview Advantech Wireless A-Line Series antennas are designed and manufactured in batches with 6-meter Dual-shaped Compact Cassegrain all aluminum reflector antenna for VSAT applications in both C band (Model C3956T) and Ku band (Model K6T). The A-Line Series C3956T and K6T models adopt a precision-formed reflector mounted on an Az over El pedestal providing necessary More Info »A-Line Series 7.3m ANTENNA

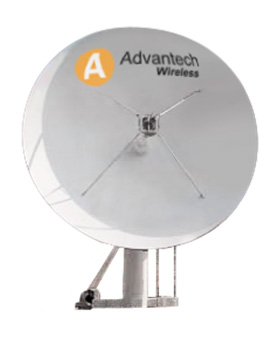

Overview Advantech Wireless A-Line Series 7.3M antenna system, Model 3957TC and Model 3957TK, designed and manufactured with CAD, can be applied to the newly updated INTELSAT (IESS) standard earth station. The Advantech Wireless A-Line Series 7.3M antenna system consists of dual shaped Cassegrain reflectors, a frequency reused feed network with corrugated horn, an elevation-over-azimuth limit More Info »A-Line Series 9m ANTENNA

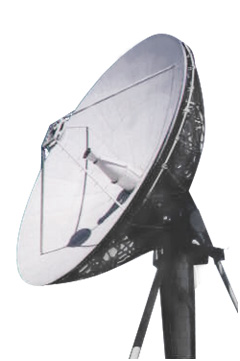

Overview This high performance Advantech Wireless A-Line Series 9M antenna can operate at C-band or Ku band for world wide application. The 9M antenna system, designed and manufactured with CAD, can be applied to the newly updated INTELSAT (IESS) standard B and E earth station. The Advantech Wireless A-Line Series 9M antenna system consists of More Info »Advantech Wireless NEW Generation VSAT Hubs Product Line
Features Up to 135 Mbps outbound / Up to 6 Mbps inbound per carrier DVB-S2 CCM/VCM/ACM outbound maximizes bandwidth efficiency Optimized for IP and multi-media content Open standard design (DVB-RCS) Qualified with multiple IP/DVB broadcast platform vendors Interoperable with 3rd party SatLabs certified terminal vendors Unique and powerful multi-carrier demodulation technology World-class scheduling efficiency, maximizing More Info »AMT 30 Modem Series
Features 16 kbps to 10 Mbps in 1 bps Steps Viterbi FEC L-band or 70MHz interfaces Multi-demod configurations BPSK ,QPSK, 8PSK & 16QAM Operation Optional: Reed Solomon Bridging and/or IP routing (standard) Optional: turbo Product Code Overview The AMT 30 modem series provide unparalleled flexibility in interfaces and capabilities stemming from its modular construction. The More Info »AMT 73L Modem Series DISA CERTIFIED
Features MIL-STD-188-165A CERTIFIED Data Rates 64kbps – 52Mbps in 1bps steps Optional eTPC Rates from 0.5 to 0.92 eTPC Extends data rate to 110Mbps BPSK, QPSK, OQPSK, 8PSK & 16QAM Modem types A, B, D, E & F Intelsat and OM-73 (V)/G scrambling Optional DVB-S and DVB-SNG Physical Engineering Service Channel Software Up-gradable Built More Info »AMT 75e DVB-S/S2 High Speed Broadcast Modem
Features Combines Advantech Wireless’ powerful DVB-S/S2 modulator and demodulator in a single 1 RU chassis. Powerful Forward Error Correction (FEC) choices compliant with DVB-S, DVB-DSNG, and DVB-S2. The DVB-S2 implementation includes 16APSK/32APSK and both 16k (SHORT) and 64k (NORMAL) FEC Block sizes 64QAM support is backed with powerful LDPC BCH implementation (4th generation turbocode) to More Info »Antenna Motor Drive Cabinets
Advantech Wireless can supply a comprehensive range of Drive Cabinets to complement their INTRAC range of Tracking Antenna Controllers. Brief descriptions of the standard units are given below. MC381 & MC382 Three Phase AC Drive Cabinets These Drive Cabinets are contactor based and can be supplied for single speed (MC381) or dual speed (MC382) operation More Info »
ARM Series 1:1 Redundancy Solutions
Advantech Wireless modems come with easy to use functionality to facilitate one-for-one (1:1) redundancy system. ARM-70x : ASI and IF (modulator only) redundancy ARM-71x /ARM-31x: EIA530/RS-422 and/or HSSI and IF redundancy ARM-72x : up to Octal G703 and dual Ethernet port and IF redundancy The ARM-70x is ideal for those applications which require a redundant More Info »
