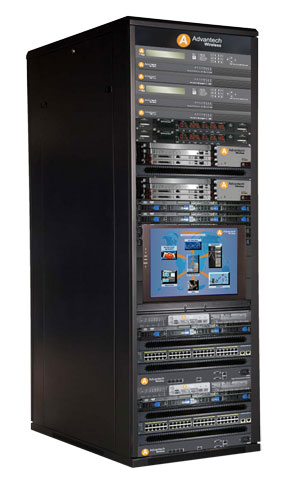

NEW – Challenger Series DVB-RCS Next Generation VSAT Hub

Features

• Up n x 155 Mbps Throughput *
• Up to n x 135 Mbps per Forward link*
• Up to 48 Mbps per Return Link*
• Support for 250 to 1,500 terminals
• DVB-S/S2 RCS and/or DVB-SCPC
• Full Featured
• Up to 6 Mbps inbound per carrier
• DVB-S2 CCM/VCM/ACM outbound maximizes bandwidth  efficiency
• Optimized for IP and multi-media content
• Open standard design  (DVB-RCS)
• Qualified with multiple IP/DVB broadcast platform vendors
• Interoperable with 3rd party SatLabs certified terminal vendors
• Unique and powerful multi-carrier demodulation technology
• World-class  scheduling  efficiency, maximizing bandwidth  utilization
• Always-on
• User-friendly Network Management System  (NMS)
• Multi-Mode DVB-RCS and DVB-SCPC network architecture support
• Mesh Overlay (peer-to-peer) capability

*Higher rates available on special order

Overview

Advantech Wireless, a world leader in satellite communications, offers the world’s leading, two-way, open standard (DVB-RCS), broadband satellite access system. DVB-RCS Hub, and in particular its Return Link Sub-System (RLSS), is at the heart of the broadband access system.

Hubs (including the RLSS) are turn-key systems which can be installed in days to enable a wide range of public and/or private network topologies with satellite interactive terminals.

The RLSS is a modular hub sub-system which can be integrated with new or installed IP/DVB broadcast platforms and IP switch/routing equipment to provide two-way satellite broadband access services.

The RLSS is designed to receive inbound traffic, handle inbound and outbound signalling, schedule and control networks of satellite interactive terminals (available from multiple suppliers). A single scalable RLSS unit can support networks ranging from just tens to thousands of simultaneously logged-on terminals.

VSAT Hubs Capabilities
