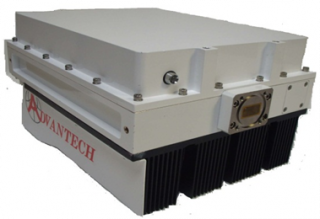

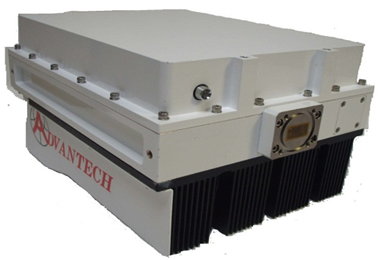

Ku-Band Hub-mount SSPB/BUC 20W to 80W Compact SSPB-S2100K series
Features
- Converts L-Band to Ku-Band (see table A)
- Integrated amplifier with an output power of 20W to 80W(see table A)
- Phase-locked oscillator to external 10MHz reference
- High linearity (low intermodulation products)
- Built-in Receive Reject Filter
- Remote Monitor & Control
- Protection against thermal runaway and out-of-lock conditions
- Built-in power supply
- Light weight
- Weatherproof package
- Compact packaging
- CE Marking
Overview
The SSPB-S2100Kâ series are hub-mount up-converter transmitters, operating in the Ku-Band. The SSPB-S2100Kâ is an integrated unit, complete with power supply, phase-locked oscillator, mixer, filter and cooling mechanism. Intended for outdoor operation, the SSPB-2100Kâ provides the utmost in convenience and efficiency. Other SSPB’s are also available for higher powers or for operation at other up-link frequencies.
The design of these units is based on ADVANTECH AMT™ industry proven reliable solid-state high power amplifiers. The use of high efficiency power supply and conservative thermal designs contribute to the trouble-free operation of the amplifier.
Built-in microprocessor controller provides the capability for serial port interfaces (RS232/485) for remote monitoring and control.
Application
The SSPB-2100Kâ series convert an L-Band signal to the Ku-band frequency (see table A). Designed for Ku-Band satellite up-link applications, the SSPB K series are available in output power from 8W to 500W. The SSPB-S2100Kâ series are fully integrated units from 20W to 80W output power designed for mounting outdoors, near the hub of an antenna.
Accessories
- Remote M&C panel (Ethernet port optional)
- Handheld terminal
- Boom mounting kit
