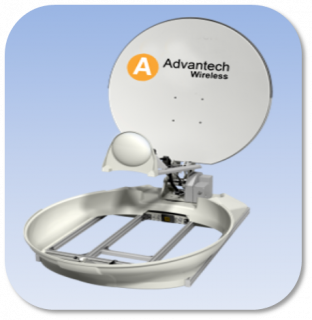

Drive-Away Satellite Communication Antenna – PIONEER Class with IPOINT

Features

• 1.2m and 1.5m Ku-Band Reflector options
• Compact and Robust
• Auto-Pointing IPOINT™ Controller
• Can be Operated by Anyone
• Acquires in < 3 minutes
• Available with integrated Tx Power up to 125W Ku-Band
• 1:1 redundant system
• Simple Operation – Requires no Satellite Communication Expertise
• Acquires the satellite within minutes
• Completely automatic one button acquisition of required satellite
• Low cost, high performance and reliable satellite acquisition
• Ultra-Compact
• Aerodynamic Antenna Enclosure

Overview

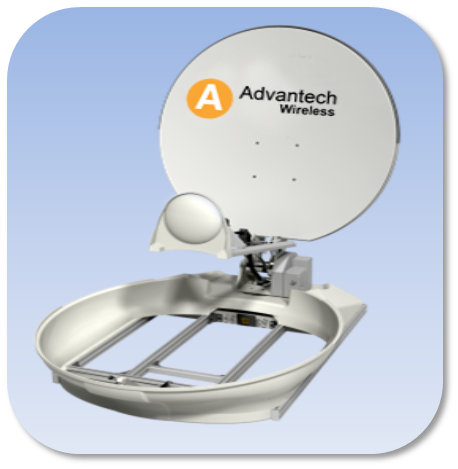

The PIONEER120™ Ku & PIONEER150™ Ku antennas are ultra-compact roof mounted systems. The antennas encompass the drive control, positioning hardware and BUC into the aerodynamic antenna enclosure, making the system a robust standalone sub-assembly ready to install onto almost any vehicle.

The versatile power-payload of the Ku-Band PIONEER Class antennas has been designed to house SSPAs with power levels up to 125W Ku-Band or Extended Ku-Band in single thread or  1:1 redundant configurations.

The system is simple to install, set up and use. Following relocation of the antenna, the system will reliably and accurately locate and lock on to the designated traffic satellite rapidly within minutes. The IPOINT™ Auto Acquisition Controller uses industry standard position transducers and a sophisticated pattern recognition algorithm to confirm and refine its heading information using visible satellites. The controller is mounted on the antenna structure with a separate control panel with integral power supply in a rack mount unit for mounting within the equipment area
