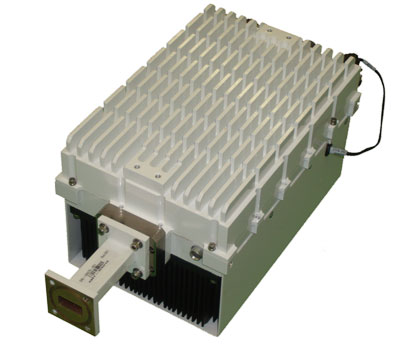

Ku-Band SSPB/BUC 25W to 40W Lightweight SSPB-115K series

Features

  • Up-converts an L-Band input frequency to a standard Ku-Band frequency or to an extended Ku-Band frequency
  • Output power 25W , 30W and 40W
  • Lightweight, smallest fully integrated BUC on the market
  • Phase-locked local oscillator locks directly to an external 10 MHz reference
  • Exceeds IESS 308/309 Phase/Noise requirements by more than 3 dB
  • Robust, weatherproof package
  • Protection against thermal runaway and out-of-lock conditions
  • High efficiency and low power consumption
  • DC operation from 18VDC up to 60VDC
  • CE Marking

Overview

Ideally suited for fly-away or portable terminal applications, the SSPB-115K series are hub-mount up-converter transmitters, operating in the Ku-Band. The SSPB-115K is an integrated unit, complete with power supply, phase-locked oscillator, mixer, filter and cooling mechanism.

Application

The SSPB’s convert an L-Band signal (950-1450 MHz or 950 – 1700 MHz) to the Ku-band frequency of 14.0 -14.5 GHz or extended Ku-band (13.75 –14.5 GHz). Designed for Ku-Band satellite up-link applications the SSPB-110Kâ series is fully integrated units with 25W, 30W and 40W output power designed for mounting outdoors on the OMT or boom of the antenna.

OPTIONS

  • Universal AC operation
  • Serial port interface

ACCESSORIES

  • Mounting kit
  • Receive Reject Filter
