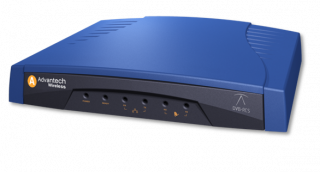

Legacy Terminal -S4100 DVB-RCS VSAT Terminals

The S4100 is no longer manufactured. It has been replaced with the S4120.

Features

• DVB-S2/S downstream up to 80 Mbps (hub to remote) with the Ethernet throughput up to 36 Mbps
• Up to 6 Mbps upstream (remote to hub)
• GUI-based control panel
• Easy-to-configure Ethernet connectivity to your PC, LAN or Router
• On-board TCP and HTTP acceleration
• Application QoS
• VoIP support
• VPN and accelerated VPN support
• Easy and simple installation
• Small form factor, rack mountable options

Applications

• Internet/Intranet Access
• Email, File Transfer,
• Video Conferencing,
• VoIP,
• Video Streaming,
• Backup Services,
• Private Networking,
• Video-On-Demand,
• Distance Learning

Overview

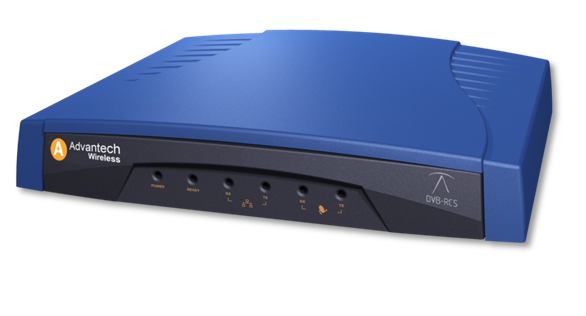

Advantech Wireless’ S4100 VSAT terminals are DVB-RCS compliant. They are optimized to achieve high-performance and quick response time for professional, enterprise and governmental applications in an economical fashion.  The terminal has been designed with all key IP features to fulfill all the needs of an enterprise.  The attractive design and small form-factor make it ideal as a cost-effective, desktop high-speed solution; 19-inch rack mountable kits are available for special usages.  Thousands of the S4100 VSAT terminals can populate a DVB-RCS compliant hub in a teleport.  The DVB-RCS compliance allows for other vendor’s terminals to interoperate with the DVB-RCS terminals in the same network or with other vendor’s hubs.

The S4100 offers powerful connectivity directly to the LAN/WAN environment or directly to a host    computer. A truly professional solution, it’s an out-of-the-box, ready-to-go, cost-effective broadband solution for SOHO & enterprise use.

As a replacement for a cable or DSL connection, as a backup solution to provide continuity of operations or to provide broadband to remote regions, the S4100 performance provides bandwidth-on-demand. Designed to support unicast or broadcast traffic up to 36 Mbps on the forward link (hub to remote terminal), with the choice of standardized DVB-S2 or DVB-S transmissions, and up to 6 Mbps transmission on the return link (remote terminal to hub) the S4100 is ideally suited for all business needs.
