S5420 Multi-mode DVB-SCPC/DVB-RCS Terminal

Features

  • DVB-S2 (ACM,VCM,CCM)/S downstream up to 135Mbps (hub to remote) with IP throughput up to 40Mbps
  • SCPC (DVB-S or DVB-S2) or RCS upstream (remote to hub) with IP throughput up to 10Mbps
  • GUI-based control panel
  • Easy-to-configure Ethernet connectivity to your PC, LAN or Router
  • On-board TCP and HTTP acceleration and on-board data compression
  • Application QoS & VoIP support
  • VPN and accelerated VPN support (optional)
  • VLAN support
  • GPS input port
  • Simple installation
  • 19 inch, 1U rack mountable
  • Low Cost

Overview

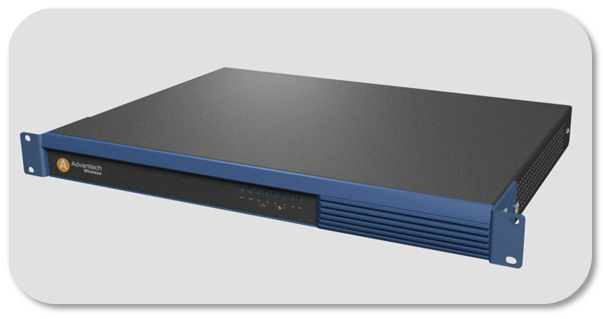

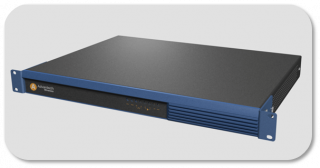

Advantech Wireless S5420 VSAT terminals are both DVB-SCPC capable and DVB-RCS compliant, providing Point-to-Point or Point-to-MultiPoint IP connectivity with industry leading performance at an extremely low price. They are optimized to achieve high-performance and quick response times for enterprise, service provider & governmental applications.

The terminal has been designed with all key IP features to fulfill professional needs. The 19-inch 1U rack mountable form factor makes it ideal for high end use. The S5420 supports multi-modes of operation: DVB-S2 (ACM, VCM, CCM) SCPC point-to-point, DVB-S or DVB-S2 SCPC (ACM,VCM,CCM) and DVB-RCS point-to-multipoint. This provides the flexibility to meet a variety of network topologies with a single modem solution and allows transitioning from one to another using the same terminal infrastructure. The S5420 offers powerful connectivity directly to a LAN/WAN environment or directly to a host computer. It is an out-of-the-box, ready-to-go, cost-effective broadband solution. For high end government, service provider and enterprise use, the S5420 allows the optimized use of satellite bandwidth. Designed to support unicast or multicast traffic up to 135Mbps on the forward link (hub to remote terminal) & up to 10Mbps transmission on the return link (remote terminal to hub), the S5420 is ideally suited for all DVB-SCPC or DVB-RCS needs.

The S5420 supports the Pay-As-You-Grow™ concept. The S5420 is deployed as an SCPC terminal and as the network grows, the hub and terminals can be upgraded to fully DVB-RCS compliant operation. No hardware modifications or upgrades of the terminals are necessary. The change can be completely transparent to the end user.
