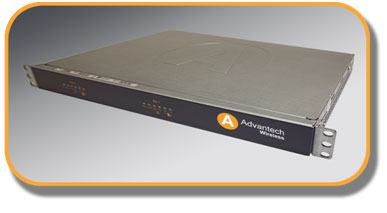

S6420 DVB-S2 Point-to-MultiPoint VSAT Terminals

Features

• DVB-S2 (VCM,CCM) downstream up to 135 Mbps (hub to remote) with IP throughput up to 40 Mbps
• DVB-S2 (CCM) upstream (remote to hub) with IP throughput up to 10 Mbps
• GUI-based control panel
• Easy-to-configure Ethernet connectivity to your PC, LAN or Router
• On-board TCP and HTTP acceleration and data compression
• Application QoS and VoIP support
• VPN and accelerated VPN support (optional)
• VLAN support
• GPS input port
• Easy and simple installation
• 19 inch, 1U rack mountable
• Low cost

Overview

Advantech Wireless’ S6420 VSAT terminals are DVB-S2 SCPC capable and provide Point-to-MultiPoint IP connectivity with industry leading performance at an extremely low price. They are optimized to achieve high-performance and quick response times for enterprise, service provider & governmental applications.

The terminal has been designed with all key IP features to fulfill professional needs. The 19-inch 1U rack mountable form factor makes it ideal for high end use. The S6420 supports DVB-S2 SCPC Point-to-MultiPoint operation, providing a two-way VSAT system with the high bandwidth efficiency of DVB-S2 in both directions.

The S6420 offers powerful connectivity directly to a LAN/WAN environment or to a host computer. A truly corporate solution, it is an out-of-the-box, ready-to-go, cost-effective broadband solution. For DVB-S2 applications and for high end government and enterprise use, the S6420 allows the optimized use of satellite bandwidth. Designed to support unicast or multicast traffic up to 135 Mbps on the forward link (hub to remote terminal), and up to 10 Mbps transmission on the return link (remote terminal to hub) the

Advantech Wireless S6420 is ideally suited for all DVB-SCPC needs.
