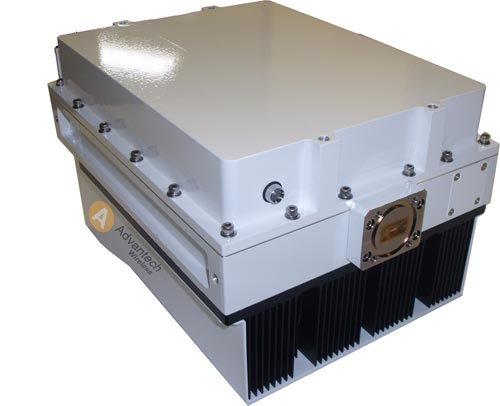

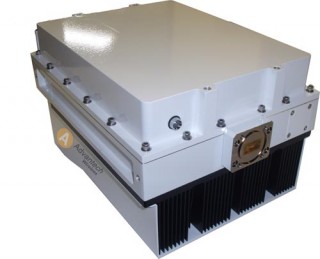

X-Band SSPB/BUC 150W/200W/250W GaN SSPBM-X 2200-G series

Features

  • Output power of 150W/200W/250W in a single compact package
  • High linearity
  • Full M&C capability via RS485 or Ethernet port (optional)
  • Weatherproof construction
  • CE marking
  • MIL-STD-188-164A latest revision compliant

Overview

Based on GaN technology the new G-Series X-Band BUCs provide high power density in a compact size. Combined with the traditional Advantech features, these new series of BUCs provide the ultimate in performance and convenience. The products in the new G-Series X-Band BUCs are available as SSPA or SSPB (BUC). The first products available in the new G-Series are 150W, 200W and 250W.

Options

  • Ethernet port
  • 70 dB Receive Reject Filter (external)
  • Harmonic filter (external)

Accessories

  • Mounting kits
  • External Receive Reject Filter
  • External Transmit Reject Filter (for RX path)
  • Remote M&C panel with optional SNMP
  • Flexible and rigid waveguides
  • Mounting frames
  • High power terminations
  • Replacement fans
